SMP LED SM Outdoor single-white

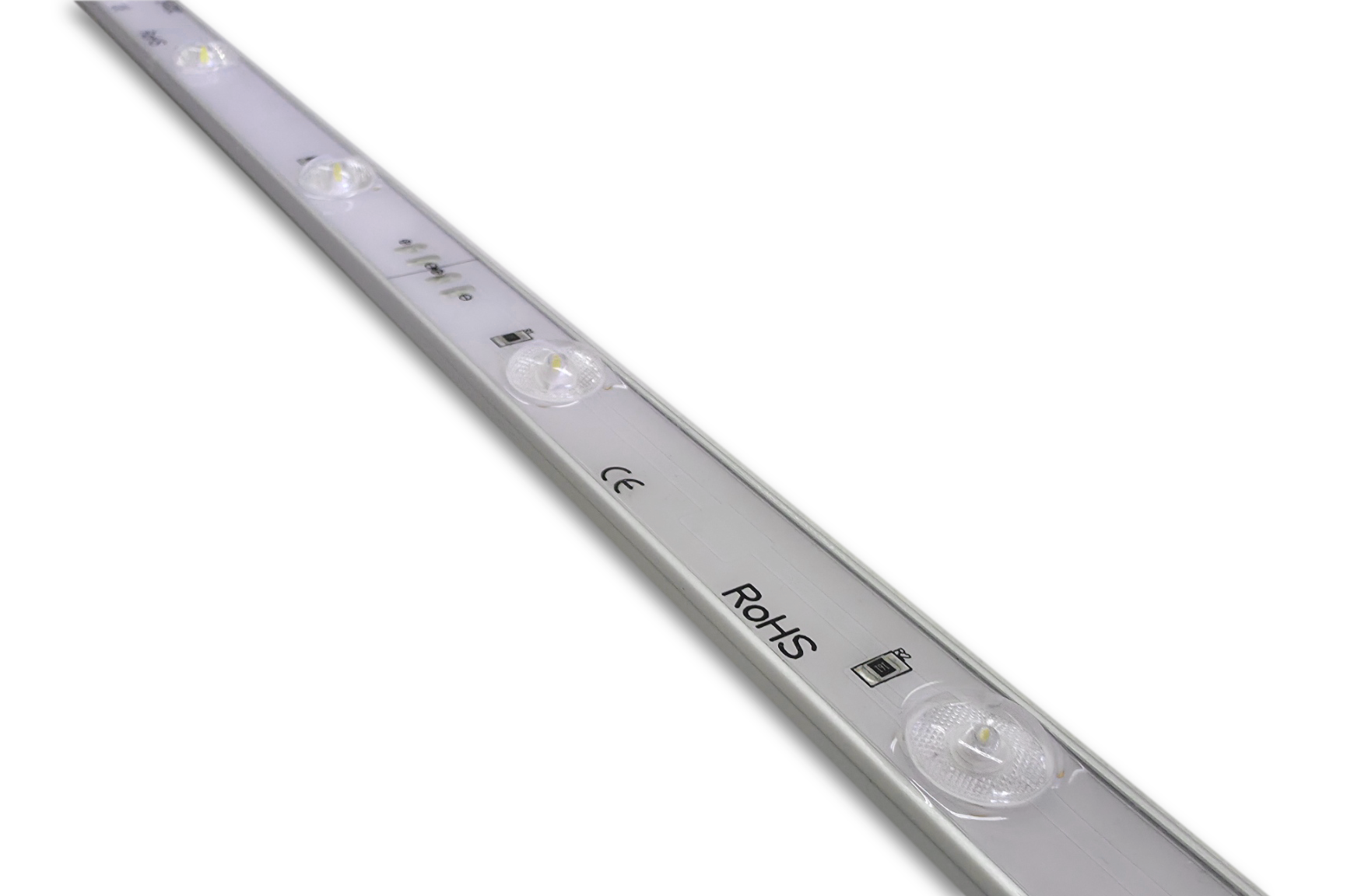

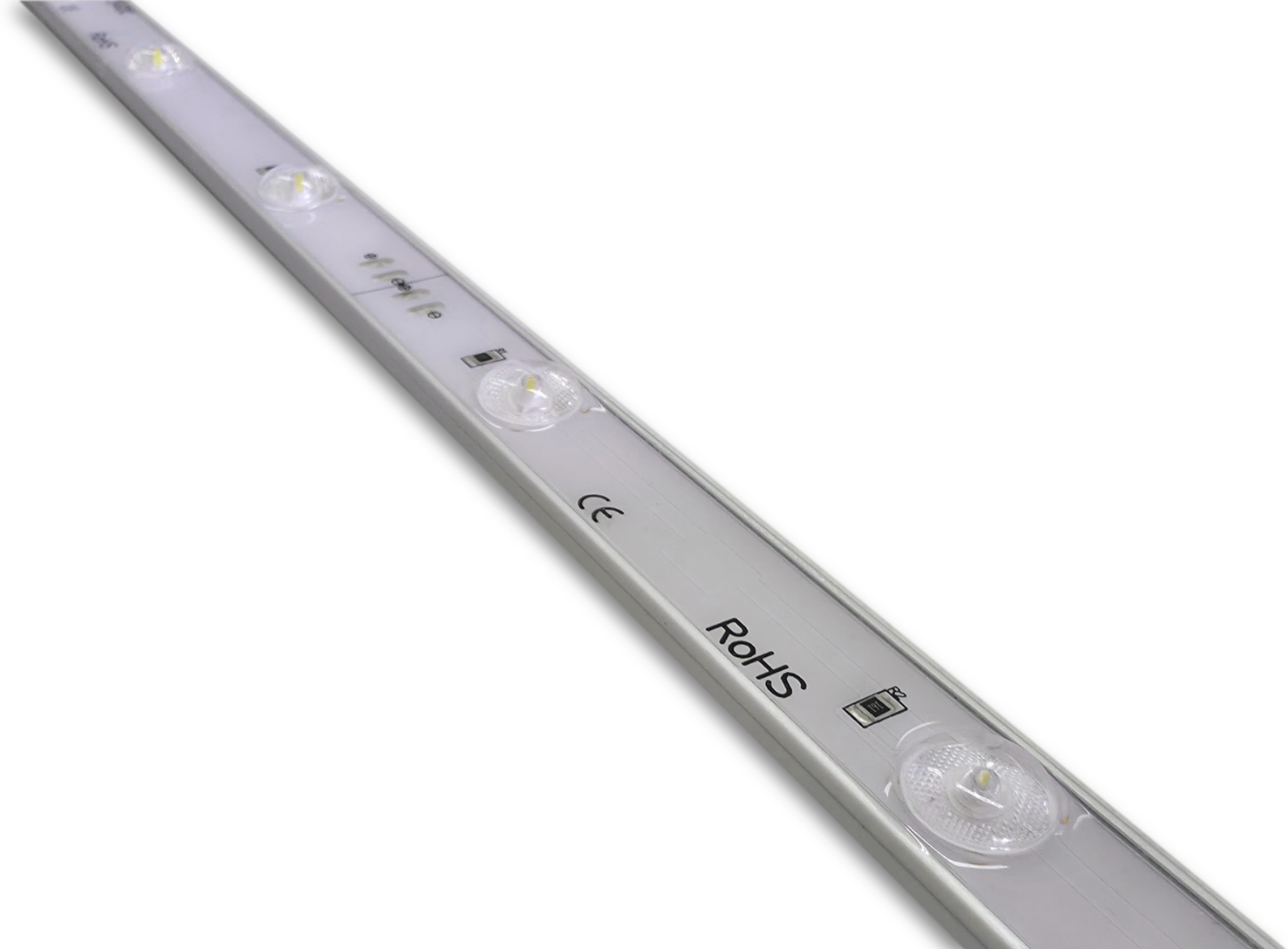

The SMP LED area board Outdoor single white was specially developed for high-brightness light boxes in outdoor areas. With high-quality 6500 K Nichia LEDs on a fully potted circuit board, it delivers daylight white, flicker-free light with high efficiency and long service life.Four length variants are available:– 238 mm with 6 LEDs / 2.5 W– 475 mm with 12 LEDs / 5.0 W– 750 mm with 18 LEDs / 7.5 W– 950 mm with 24 LEDs / 10.0 WWith up to 1200 lumens of luminous flux and a wide beam angle >175°, the module provides uniform illumination – even for large areas. The fully potted aluminum rail with IP65 reliably protects against water, dust, and weather.Installation is quick and secure: adhesive tape for pre-fixing, side screw holes for permanent fastening, and factory-soldered cables for maximum sealing and stability.The recommended row spacing of 15 cm with only 5 cm installation depth offers an excellent ratio between light output and material usage. The product is supplied in units of 10 pre-soldered modules – manufacturer-neutral and assembly-friendly.Conclusion: Robust, efficient, and high-brightness – the perfect outdoor LED module for durable 6500 K lighting in advertising systems and lighting systems with clear color temperature.
