Eco 130es OUT

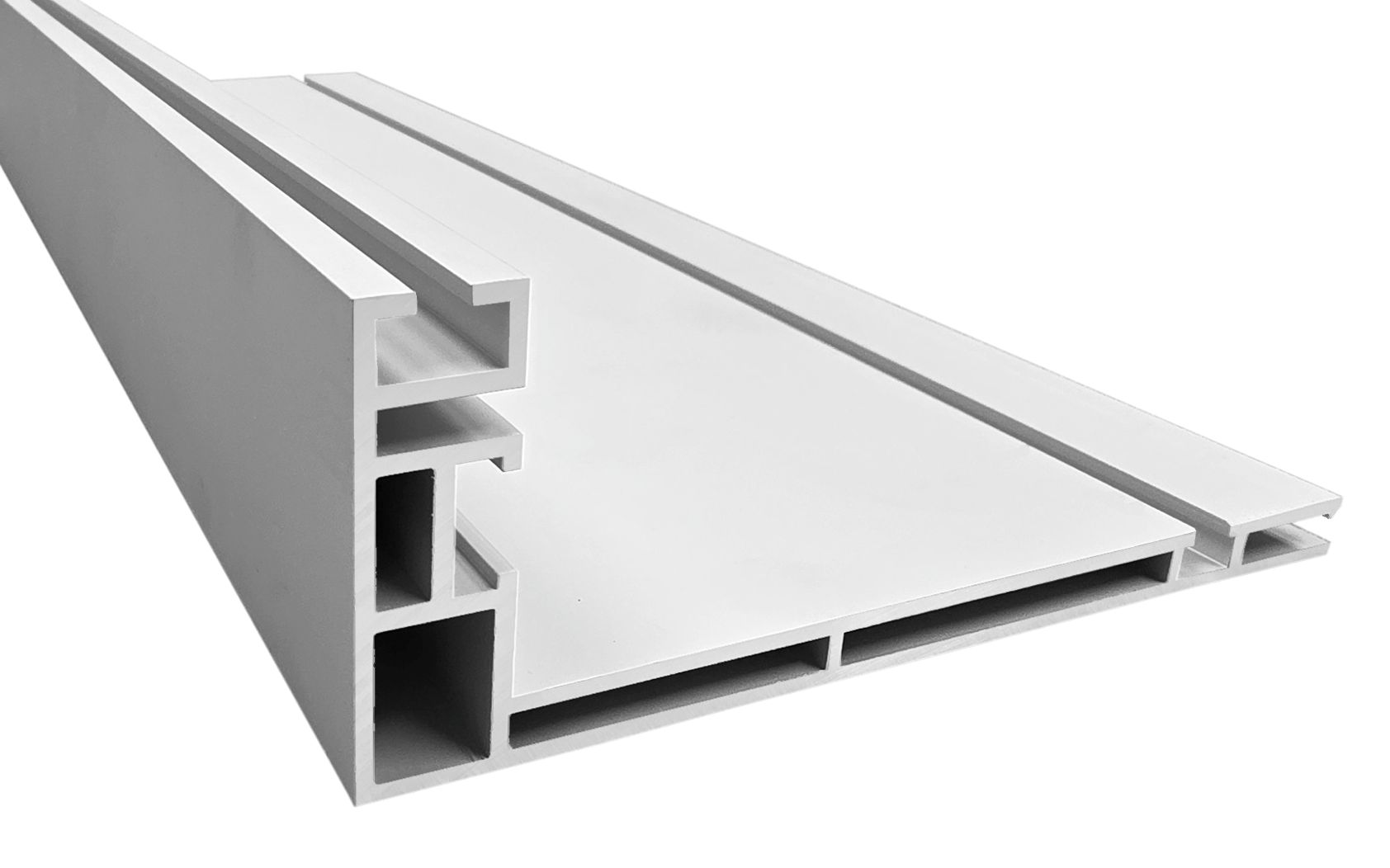

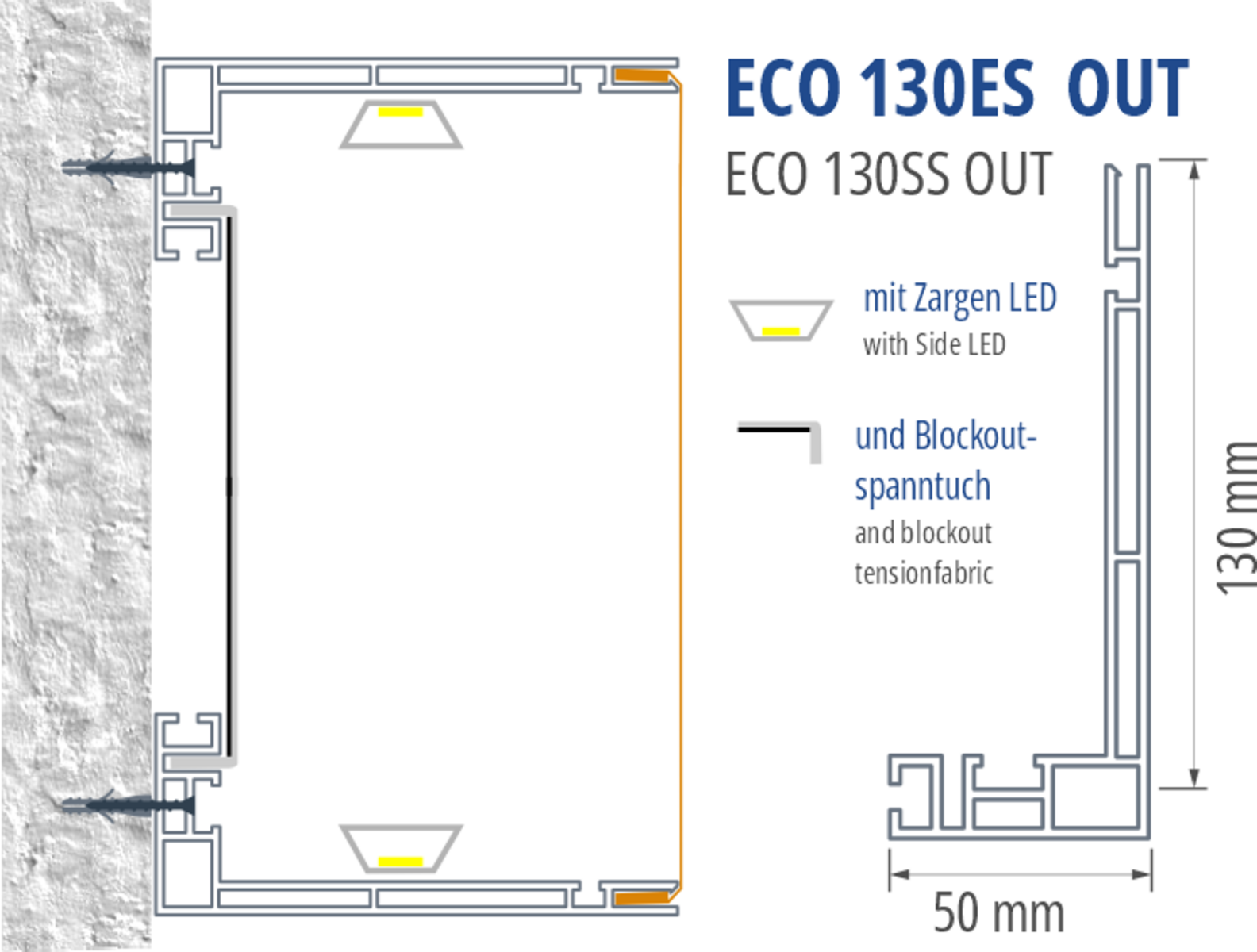

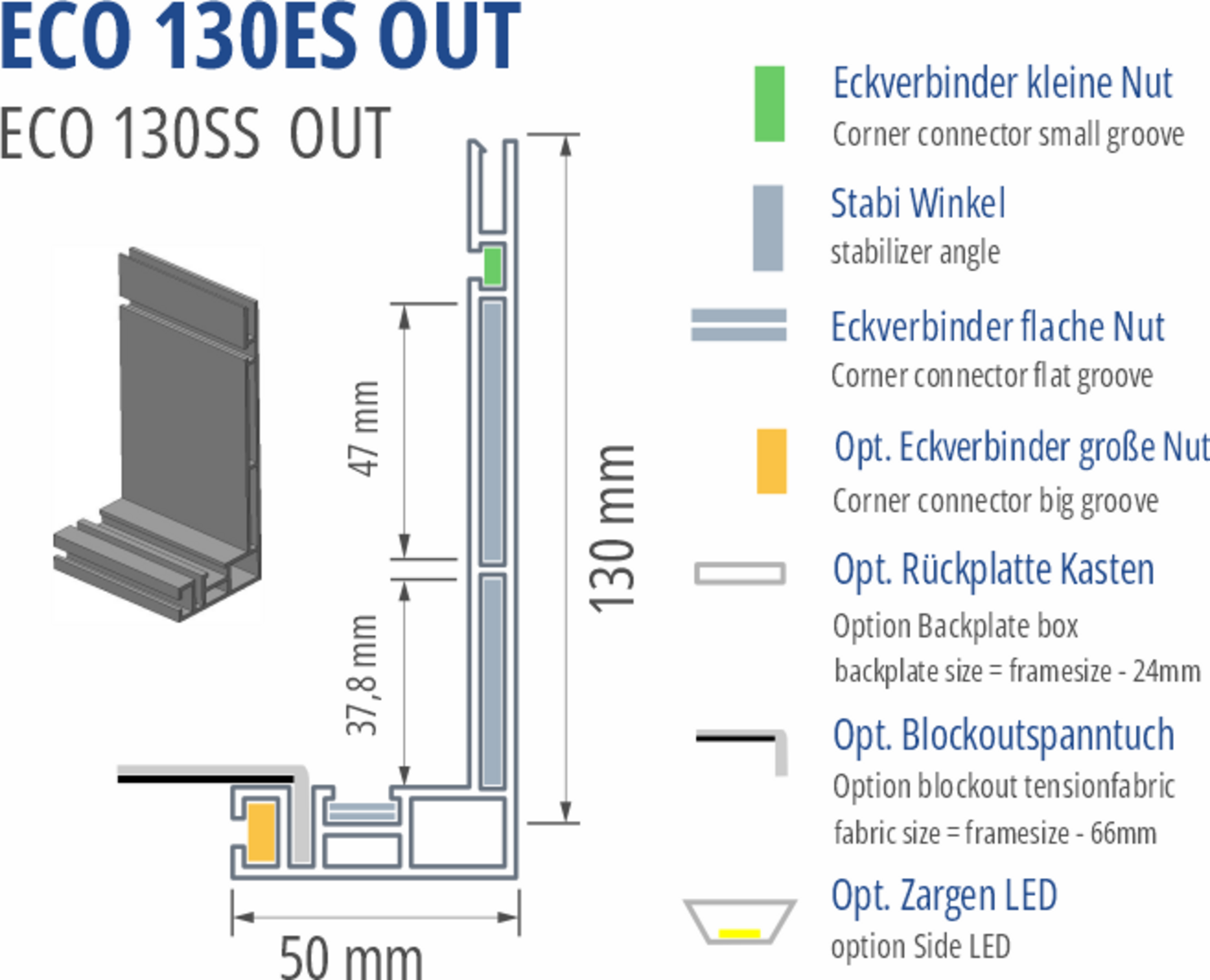

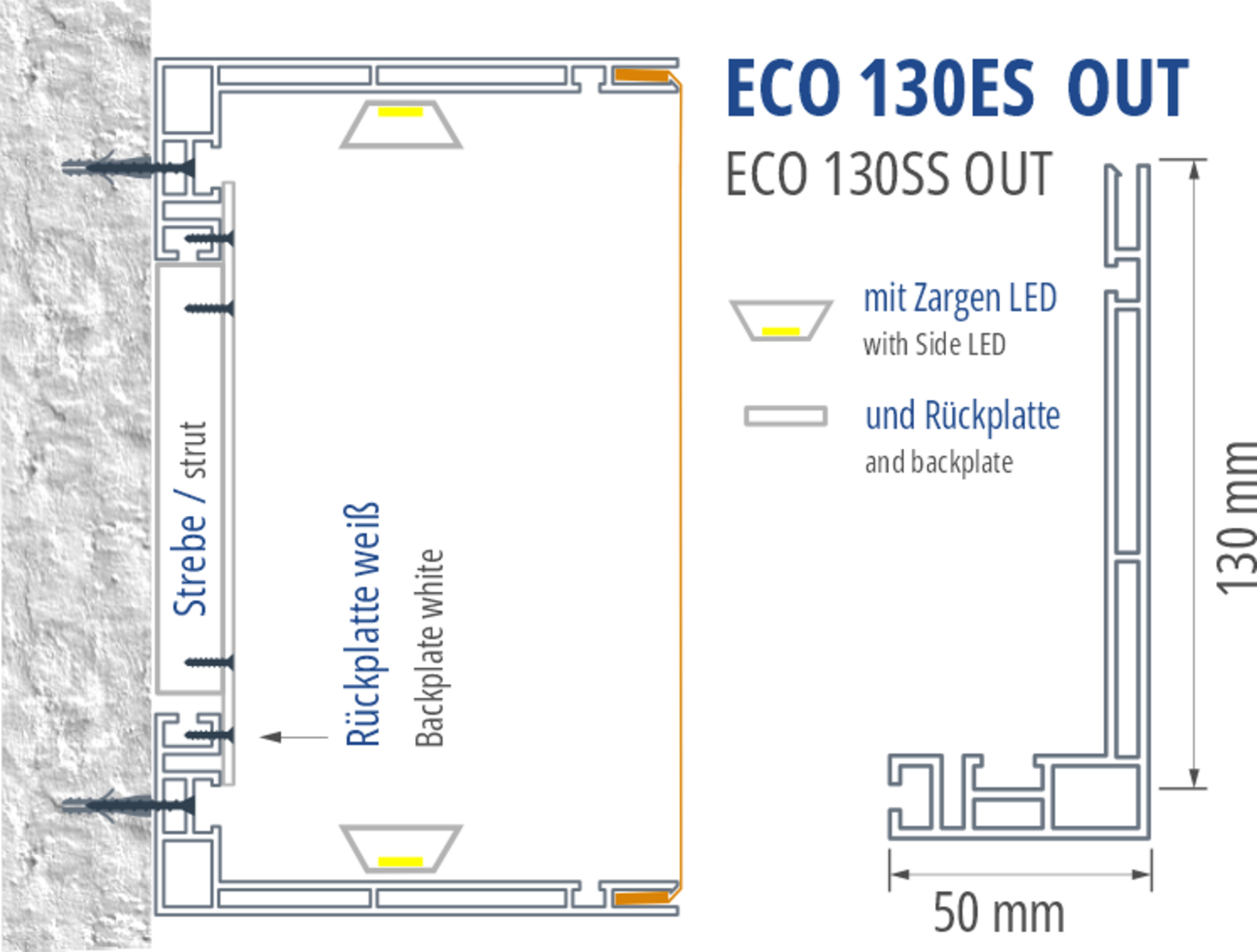

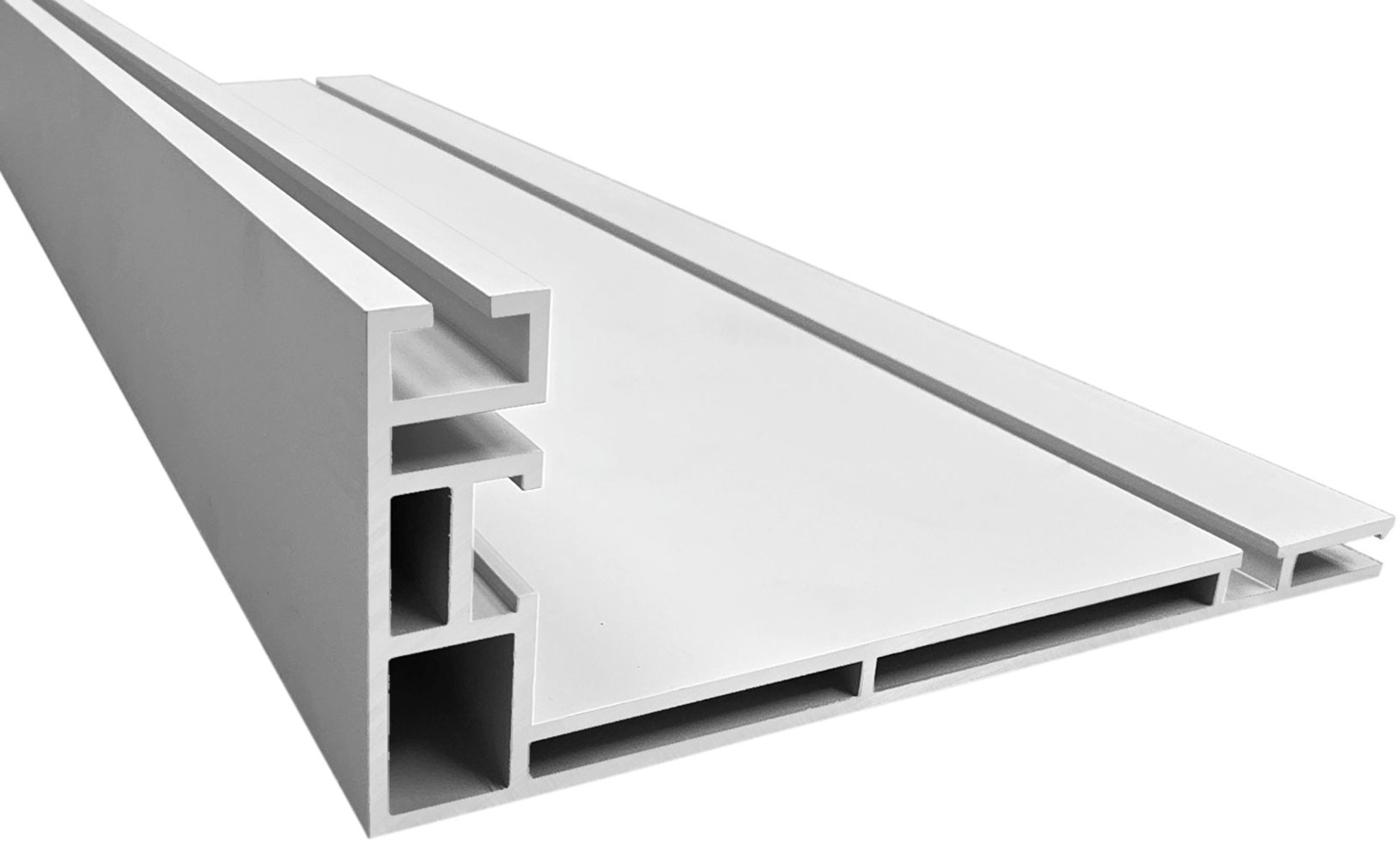

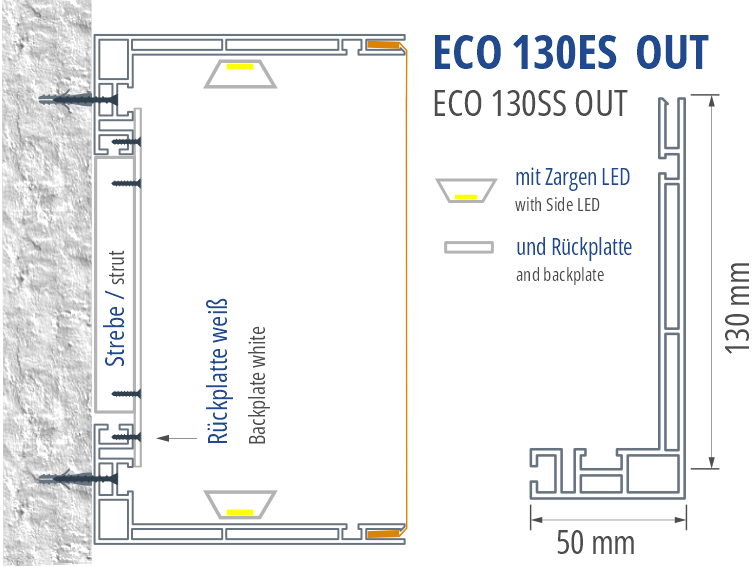

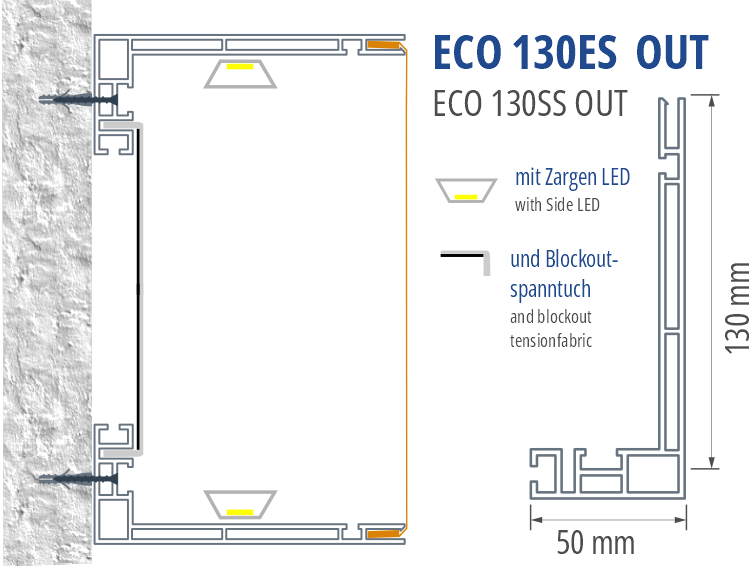

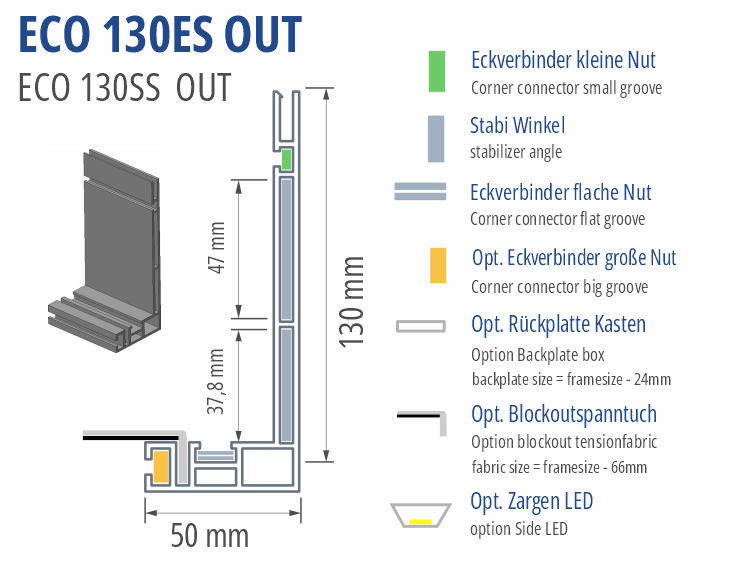

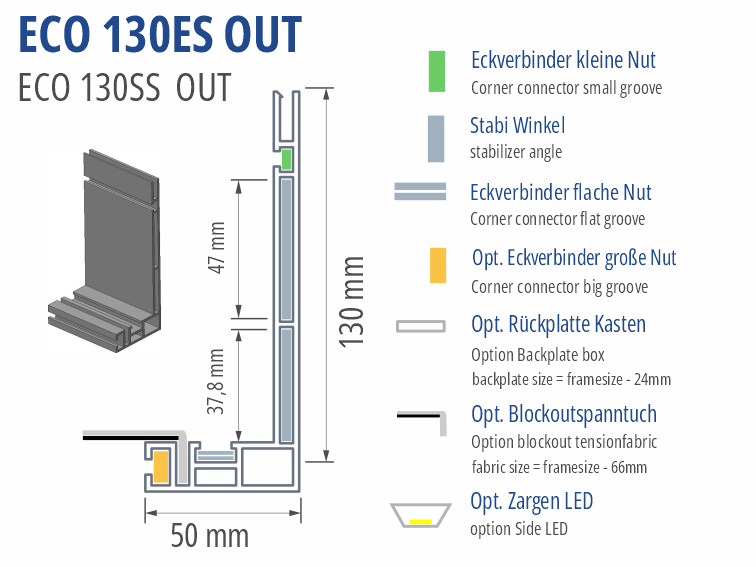

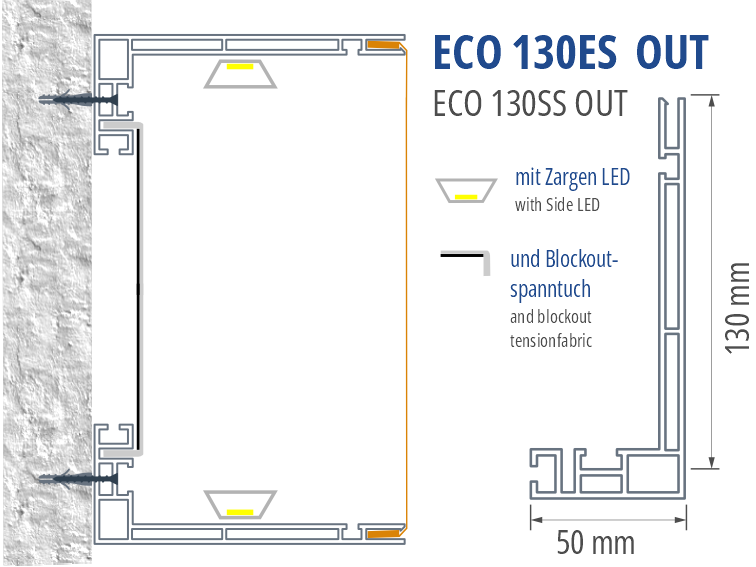

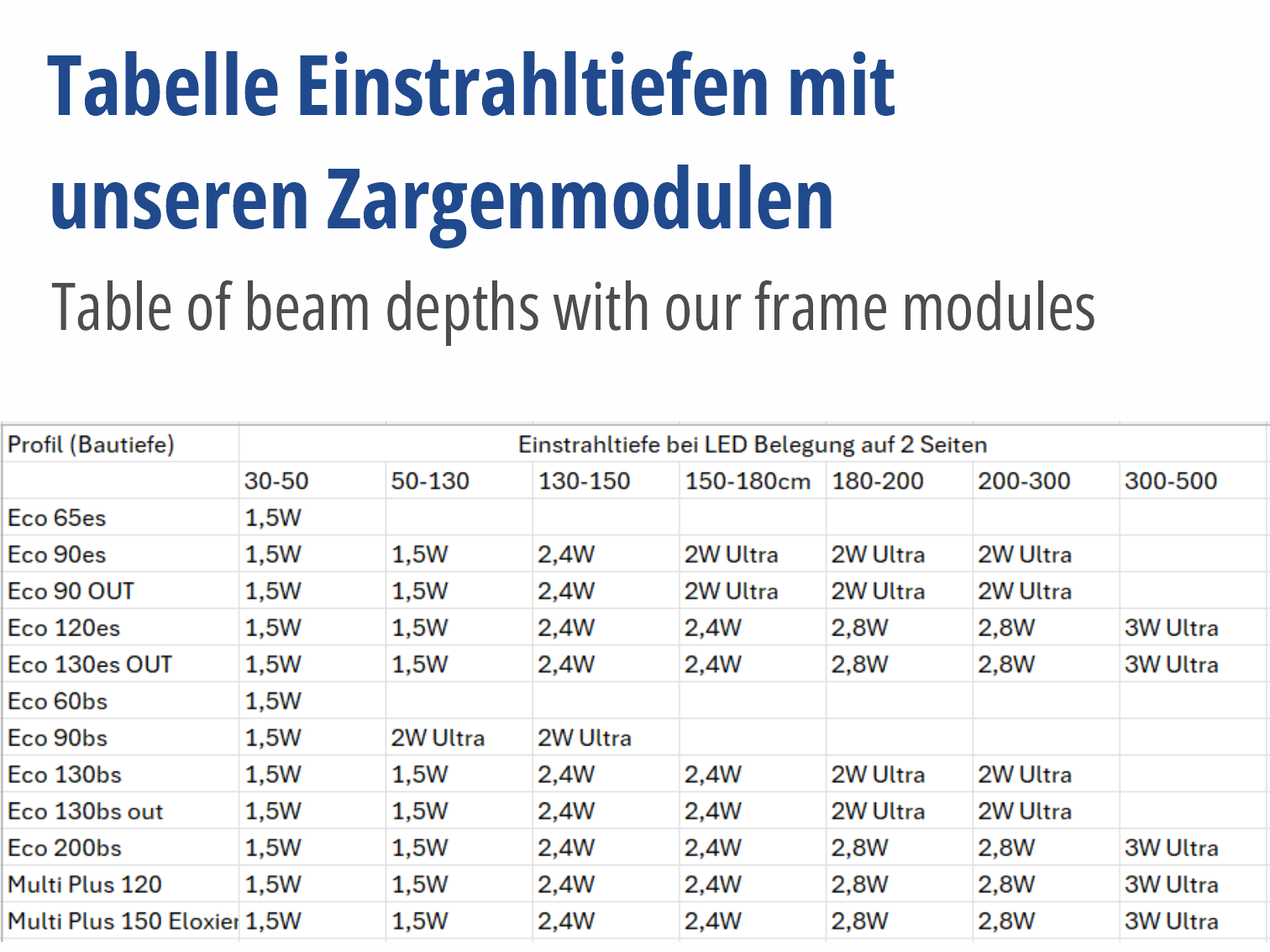

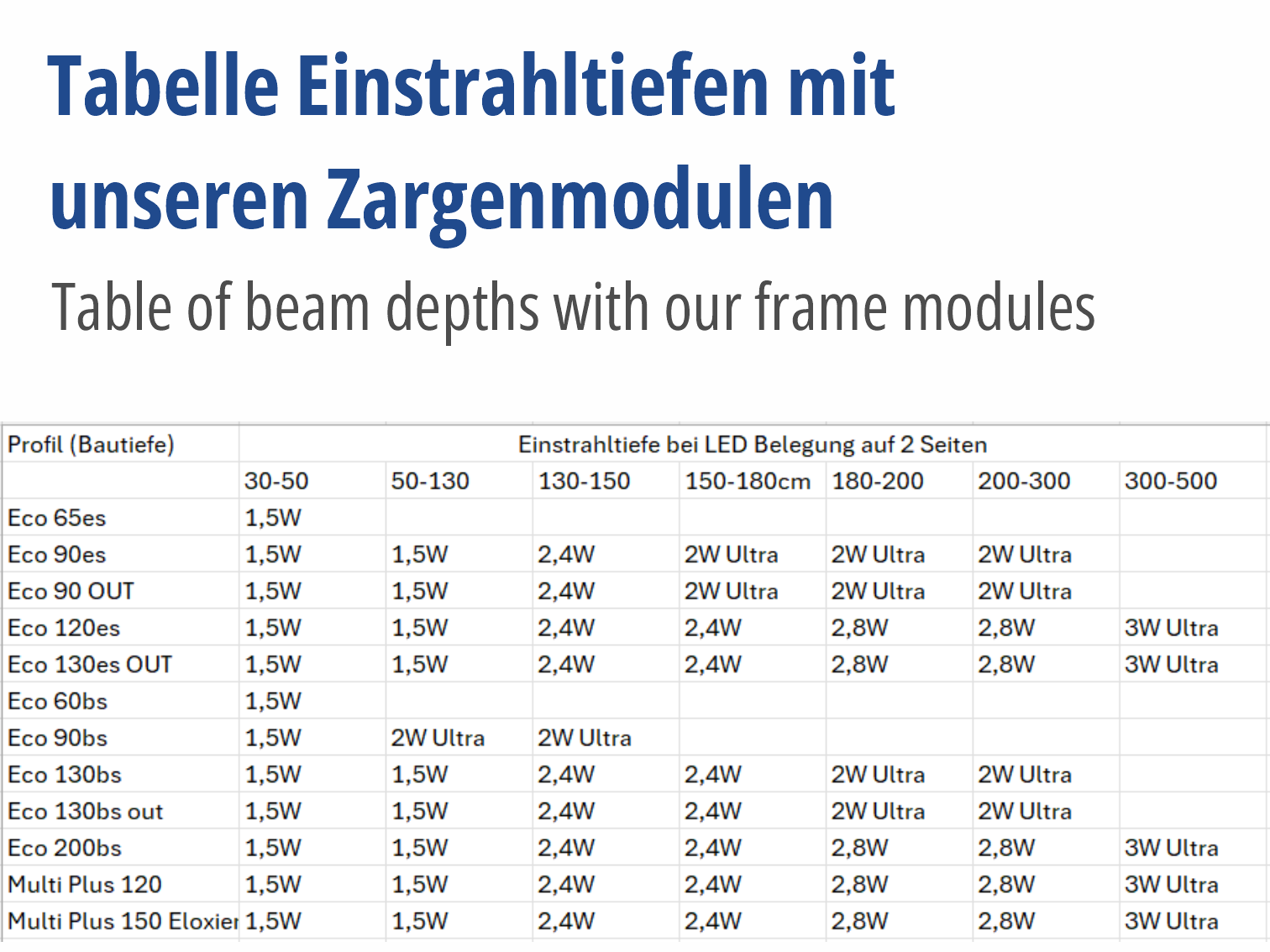

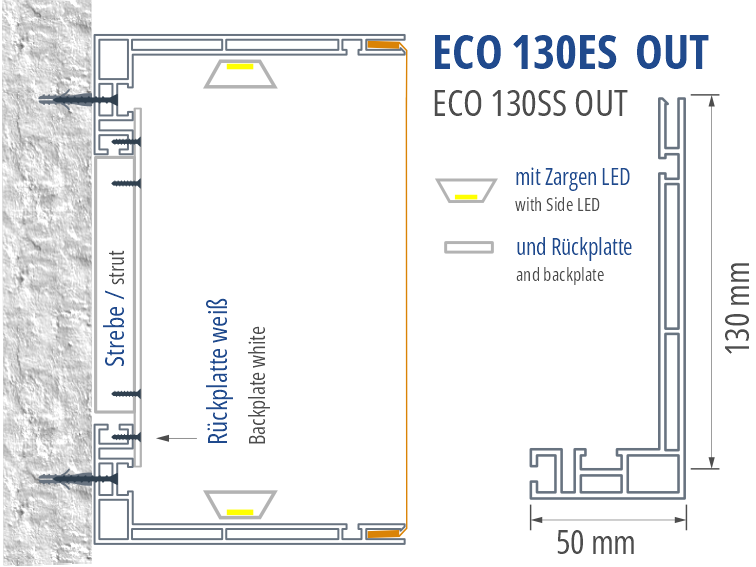

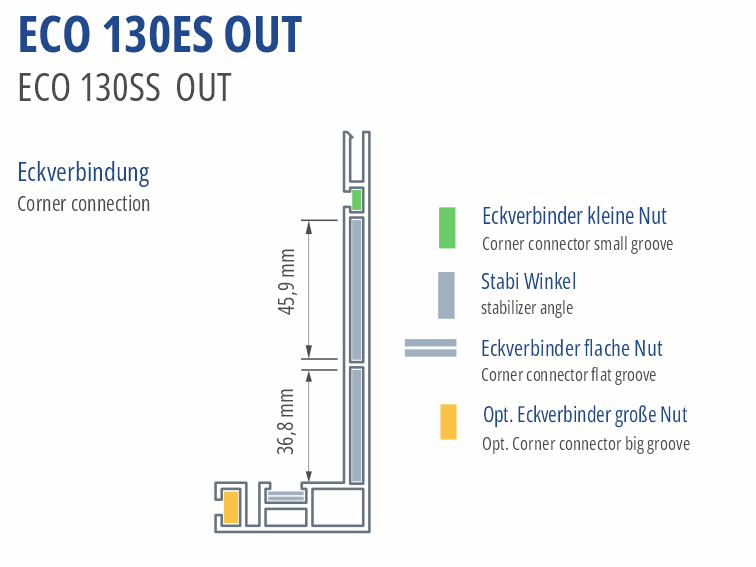

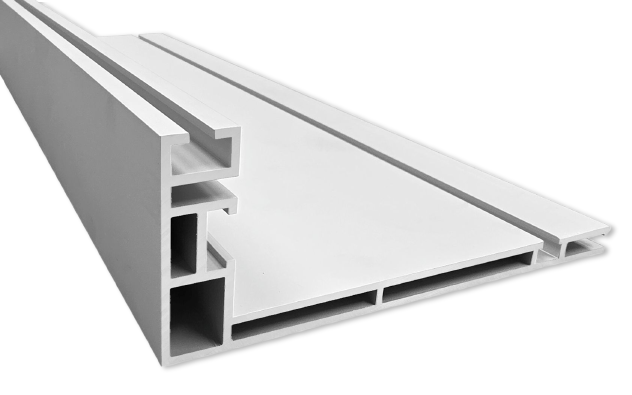

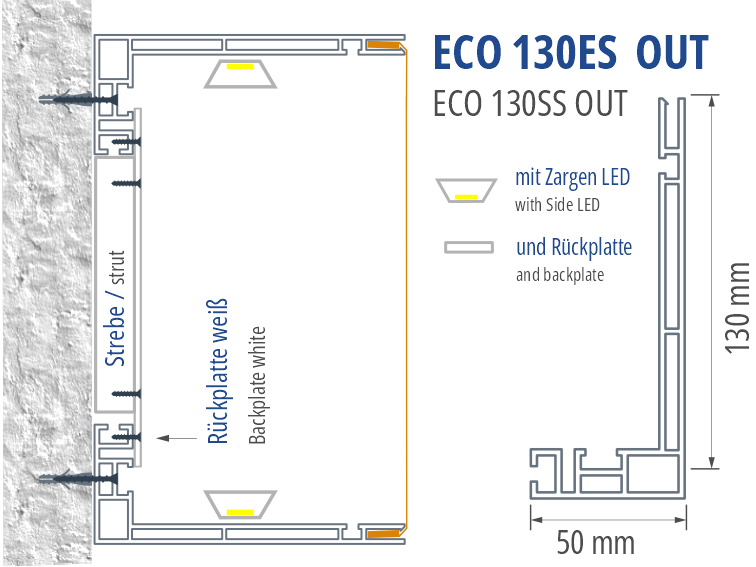

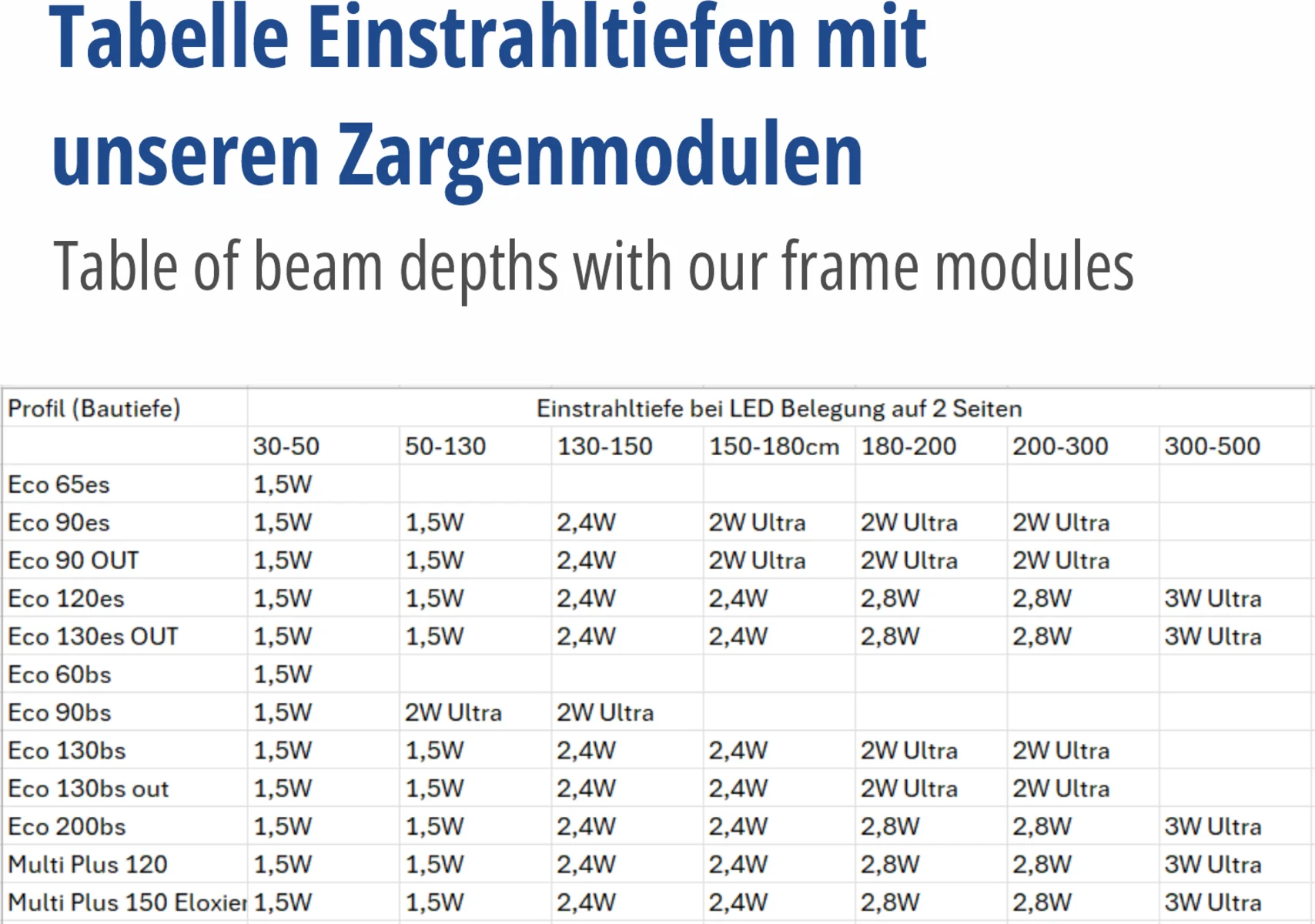

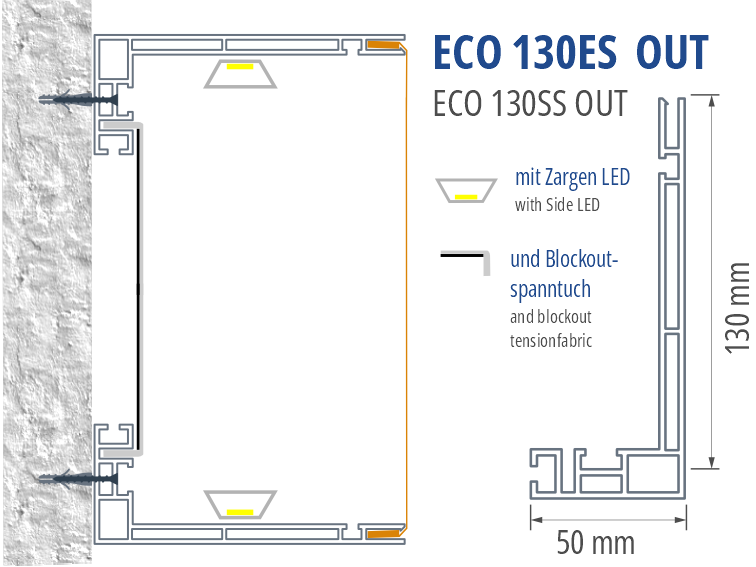

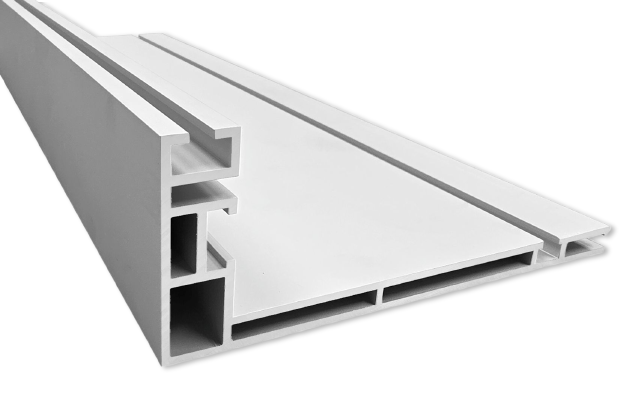

The Eco 130es OUT is an anodized aluminum profile for large single-sided LED light frames in outdoor areas. Optimized profile geometry for our outdoor corner profile. For installing large single-sided LED illuminated signage on facades or suitable substructures, including around corners. The barb on the internal web ensures absolutely secure hold of the tension fabric without additional fastening. The profile is screwed directly to the wall. Bracing is secured with quick-clamp locks. A blockout tension fabric with rubber lip can be used as a backplate replacement. For printing, we recommend the SPEEDY OUTDOOR tension fabric material from KREA Textil. It is excellent for backlighting and, in combination with our white rubber lip, has been in use outdoors for over 8 years in some cases. With 2.8W LED modules, the profile achieves homogeneous illumination up to 3 meters; with Ultra LEDs even up to 5 meters.
